Elements to Consider When Designing for Deep Drawing

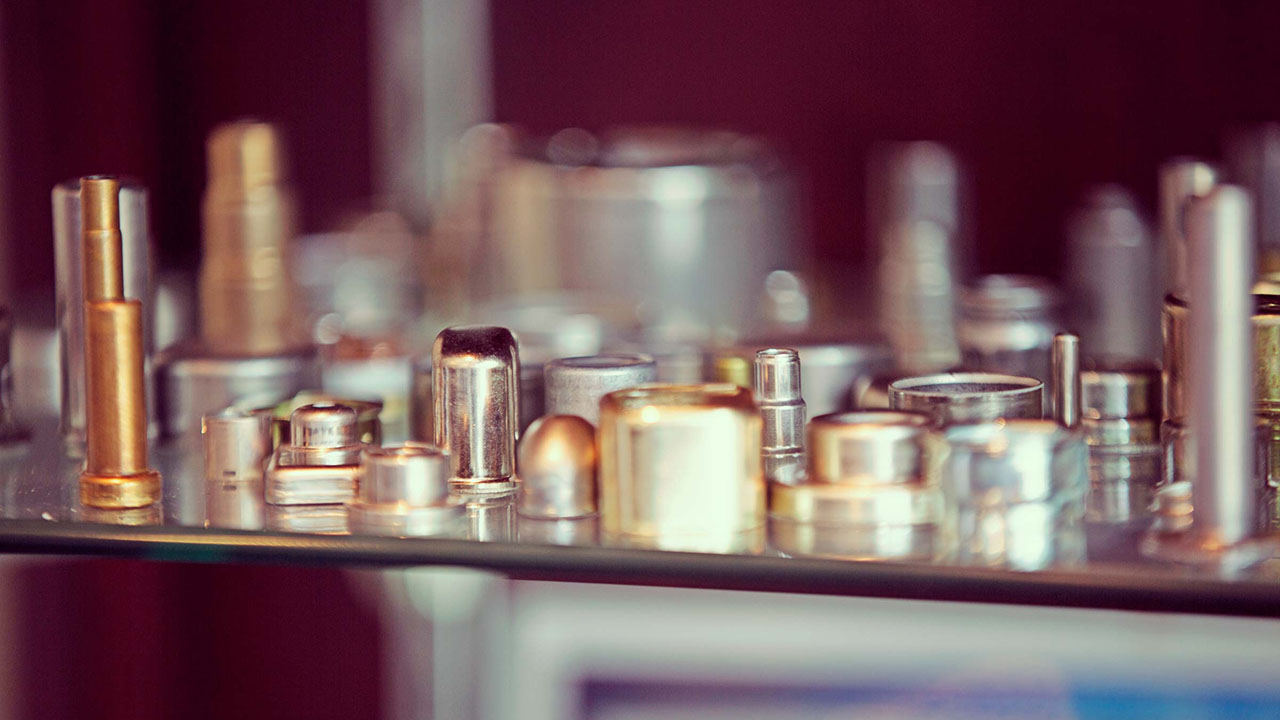

Designing successful deep drawn metal parts starts long before a press ever cycles. Companies across industries, from the automotive giants to those focused on alternative energy, rely on this trusted process to produce durable, high-precision components. As a global metal stamping manufacturer, we know that getting the design right means understanding how material, geometry, and process variables all interact.
When those elements are aligned, here’s how deep draw forming becomes a highly efficient and repeatable method.
Material Selection & Mechanical Properties
Material choice is one of the first and most important decisions in the deep draw metal forming process. Not all metals behave the same under stress, and selecting the right deep draw forming materials directly impacts part quality and consistency. Steel, stainless steel, aluminum, and specialty alloys each offer different levels of strength, ductility, and corrosion resistance.
Two key properties guide how a material will perform during : the N value and the R value. The N value reflects the work hardening exponent, or how well a material can stretch without thinning too quickly. The R value measures how a material flows during deformation. Higher R values typically mean better drawability. Balancing these properties helps avoid issues like tearing or wrinkling in deep drawn parts.
Geometry, Radii, & Draw Ratios
Part geometry plays a major role when . Simple, symmetrical shapes are generally easier to form, while complex geometries require more careful planning. Features such as sharp corners, deep cavities, or abrupt transitions can create stress points when deep drawing metal that compromise the final part.
Draw radii and draw ratios must also be carefully calculated. Generous radii allow the metal to flow more smoothly, reducing the risk of fractures. The draw ratio, which compares blank size to finished part dimensions, determines how much deformation occurs in a single operation. If the ratio is too aggressive, multiple draws may be needed to achieve the desired shape without damaging the material.
Blank Design & Thickness Control
The size and shape of the blank are critical to achieving consistent deep drawn parts. An improperly designed blank can lead to uneven material distribution, causing wrinkles, thinning, or failure during metal forming. It’s typical for engineers, like ours, to refine blank geometry through simulation and testing to ensure optimal performance.
Material thickness also needs close attention. Thinner materials may be easier to form but can lack the strength required for certain applications. Thicker materials offer durability but require greater force and careful control during deep draw stamping. Finding the right balance is essential for producing reliable custom metal formed parts.
Process Parameters & Tooling Considerations
The success of deep draw metal forming depends heavily on process control and tooling design. Several variables must be fine-tuned to match the material and part requirements:
- Press speed influences how quickly the material deforms
- Binder pressure controls material flow and prevents wrinkling
- Draw bead height and shape help regulate metal movement
- Die surface finish affects friction and material consistency
Additional factors such as die temperature, lubricant selection, binder deflection, and standoff height also play important roles. These elements work together to ensure smooth forming and repeatable results in commercial deep draw stamping operations.
Why Collaboration Matters for Optimal Results
Deep drawing is not a one-size-fits-all process. Every project brings unique challenges, whether it involves tight tolerances, complex shapes, or demanding performance requirements. That is why collaboration is key when designing deep draw forming solutions.
Working with our experienced engineers at Trans-Matic allows your company to evaluate all aspects of deep draw metal forming design, from material behavior to tooling strategy. By addressing variables early in the process, we can reduce risk, improve efficiency, and produce high-quality metal stampings that meet real-world demands.
Request a Quote for Deep Draw Forming
As a global metal stamping company, we know how important a thoughtful approach is when it comes to designing for deep draw forming. After all, we want to ensure that each part performs exactly as intended. With decades of experience and a keen attention to detail, we can produce precise deep drawn parts for your business with this effective method. Ready to get a project started with Trans-Matic? Fill out our online contact form today to schedule a consultation.
