Deep Draw Stamping vs. Machining: When Does Stamping Win on Cost and Quality?
A cup, can, housing or sleeve can be cut from solid bar stock or drawn from a flat blank. The right answer usually comes down to volume, geometry and how much metal you are willing to turn into chips.

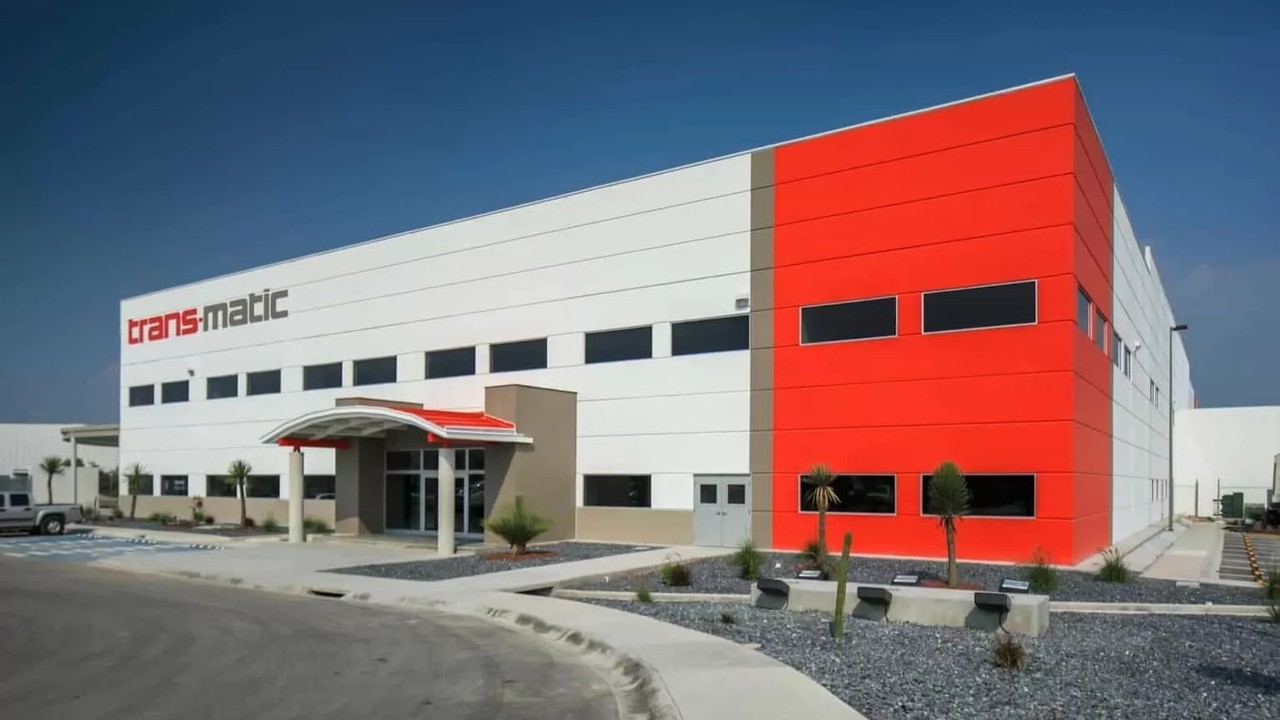

As a deep draw metal stamping manufacturer, we have quoted both sides of this question since 1968 as a deep draw stamping company in Holland, MI. Here is how buyers can tell which process fits a part.
The Volume Question
Machining has almost no upfront tooling. That makes it a sensible choice for prototypes, service parts and runs of a few hundred pieces.
Deep drawing front-loads the cost into a die. Once that die is built, each press stroke produces a part in seconds, so the tooling cost spreads thinner with every order.
Material Use and Scrap
A machined housing starts as a block or bar, and much of it leaves the machine as chips. Deep drawing reshapes a blank instead, so most of the purchased metal ends up in the part.
can be an economical alternative to machining large blocks of metal. Starting from sheet rather than block can also lower raw material cost, a point we cover in more depth in reducing scrap in metal forming.
Wall Consistency
Wall thickness is where the two processes behave differently. A lathe can hold a wall dimension directly, while a drawn wall changes as metal flows over the punch.
Deep drawing thins the wall most near the punch radius, as the explains. Good die design and staged draws keep that variation predictable from the first part to the millionth.
Tolerances and Repeatability
Machining is often the stronger choice for a single tight bore or a sharp internal corner. Stamping wins on part-to-part repeatability, because the die defines the shape and does not drift the way a cutting tool wears.
Many buyers combine both. A drawn shell can receive a bored or machined feature as a secondary step, which we describe in high-precision deep drawn parts.
Strength of the Finished Part
Drawing is a cold-working process, so the metal work hardens as it forms. The result is a one-piece shell with no weld line and a grain flow that follows the shape.
A machined part keeps the bar's original properties. Depending on the alloy, that can be an advantage or a shortfall.
Tooling Lead Time
Machining can start as soon as a program is written. A deep draw die takes engineering, building and tryout before production parts ship.
Prototype tooling shortens that wait and confirms the design first. Our prototyping process for stamped parts is built for that step.
When Stamping Wins
Stamping is usually the better fit when the part is hollow, the annual volume is steady and high, and the material is ductile enough to draw. Machining stays ahead for very low volumes, thick solid sections and features a die cannot form.
Our full metal stamping capabilities list the materials, sizes and secondary services that support this decision.
Frequently Asked Questions
At what volume does deep draw stamping cost less than a machined part?
There is no single break-even number, because it depends on die cost, part size, material price and cycle time. For hollow parts ordered in the thousands every year, deep drawing often comes out ahead once tooling is spread across the run.
Machine Design describes deep drawing as an economical alternative to machining blocks of metal. The fairest test is quoting both processes on the same annual volume.
How long does it take to build tooling for a deep drawn part?
Lead time depends on part complexity and the number of draw stations, so every project gets its own schedule. Trans-Matic designs and builds custom tooling in-house in two tooling rooms, which keeps die changes and tryout under one roof.
Our process also includes building tooling from a prototype die set, so parts can be drawn and tested before production tooling is final.
Can a deep drawn part hold machined-level tolerances?
Many deep drawn parts hold tight tolerances straight from the press, and features that need more can be finished afterward. Trans-Matic performs secondary operations in-house, including boring, crimping, automated assembly and non-destructive testing.
That mix lets a drawn shell carry a critical machined feature without paying to cut the entire part from solid stock. The best route depends on the feature, so it is worth reviewing early.
What size parts can be deep drawn instead of machined?
Trans-Matic works with raw materials up to 0.180 inches (4.5 mm) thick and produces parts up to 9.5 inches (240 mm) long. That range covers many housings, cans, sleeves and shells that are often machined from bar stock today.
Parts outside that envelope may still suit machining or another process. Sending a print early is the quickest way to find out.
Does deep drawing make the metal stronger than machining from bar stock?
Deep drawing can raise strength in the formed areas, because the metal work hardens as it is drawn. Machining removes material without changing the remaining metal much, so the part keeps the properties of the original bar.
During severe draws the metal can harden enough that annealing between stages is needed. Whether the change helps depends on the alloy and how the part is loaded.
Talk With a Deep Draw Stamping Partner
If a machined part costs too much in material or cycle time, compare deep draw stamping vs. machining. As a deep draw metal stamping manufacturer in Holland, MI, we can review your print and quote both sides honestly.
Call Trans-Matic at (616) 820-2500 or request a quote online.
